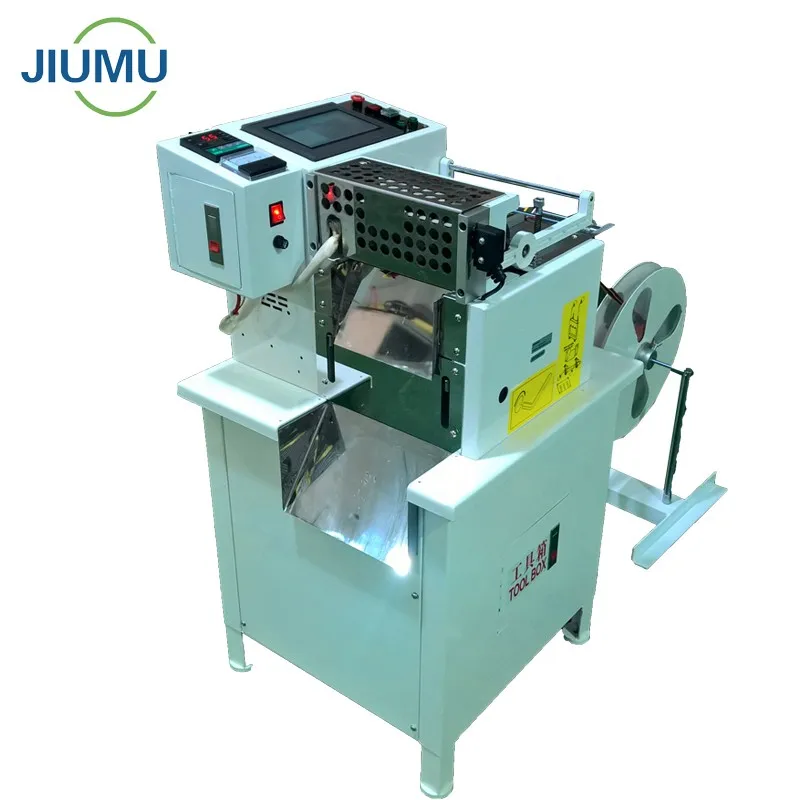

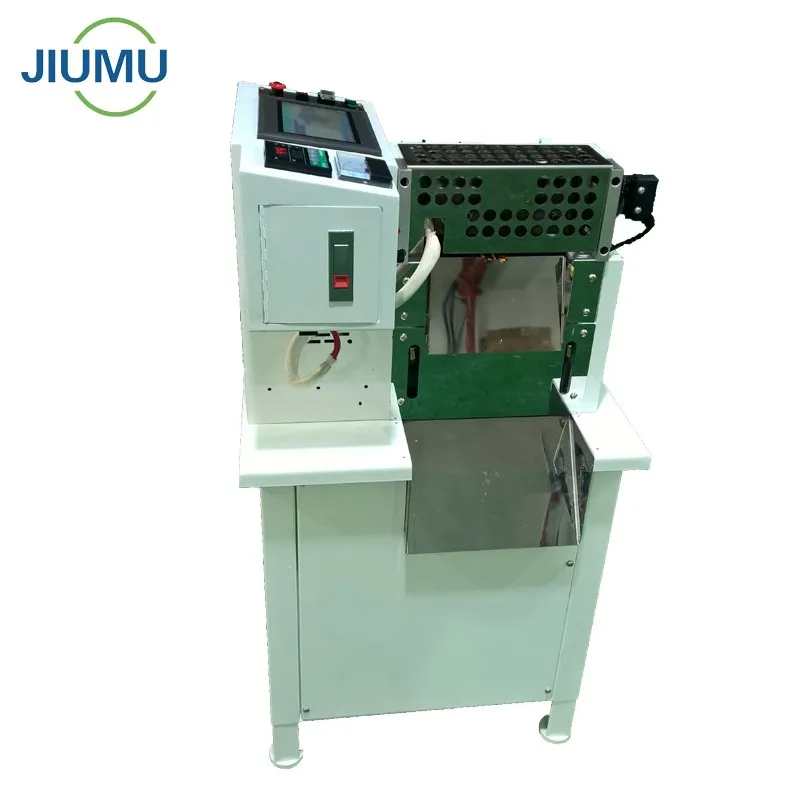

JM-160A automatic hot cutting machine

Sizing cutting for PP belt, nylon belt, ribbon, woven belt and elastic band, safety belt, bandage, etc.


描述

描述

Product Description

Product Application

Automatic belt cutting machine is designed to cut safety belt, nylon rope,  fastener tape , cotton yarn belt, elastic band, plastic belt, sleeve, rubber tube, paper, cable, wire, metal foil, and all kind of small width roll materials into sheets pieces  .

SPECIFICATIONS FOR AUTOMATIC BELT CUTTING MACHINE
Model
JM-160A
Voltage
220V
Power
375W
N.W.
83kg
G.W.
133kg
Cutting Width
1-160mm
Cutting Length
0.1-9999.9mm
Package size
600x600x1150mm

Main Features

1) Delta Servo motor & Mitsubishi PLC control ,make sure cutting tolerance can be +/-0.1 mm . .

2)Touch screen with the ability to save parameters in case of power broken.

3) Cutting Length and cutting speed is adjustable, piece counting .batch counting .

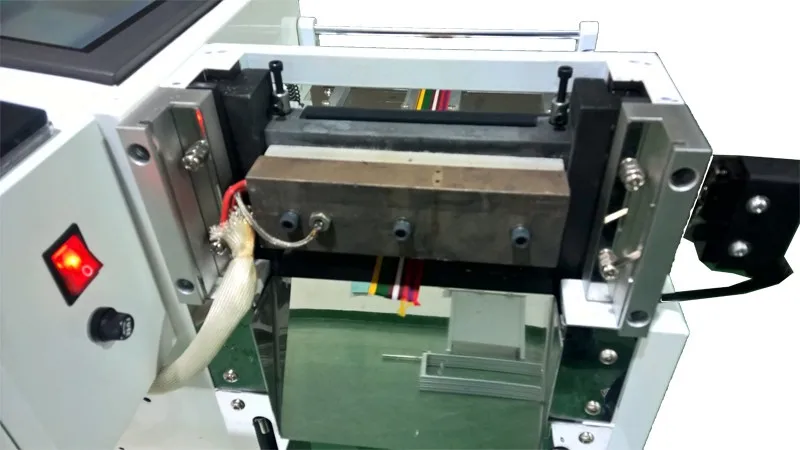

4)Cutting blade with copper electronic heating system , durable with highest hardness 65 HRC ,Japan material SKH-51.

5) Optional functions can be added: kiss-cut(half-cut), hot cutting ,photo marking ,laminating ,etc.

6)Standard machine is equipped with hot cutting blade .

Machine Parts

Name: Web guiding bars
Material : Aluminum
Original: China
It can leads your material passing in straight way to the feeding roller ,make sure your products are in right angle  .Several strips cutting at same time are available too .

Optional part

Name: Cold cutting blade
Material : SKH-51
Original: Japan
This unit can finish cold full cutting function .Scissor-type cutting blade, durable with highest hardness 65 HRC .Easy to adjust and maintain

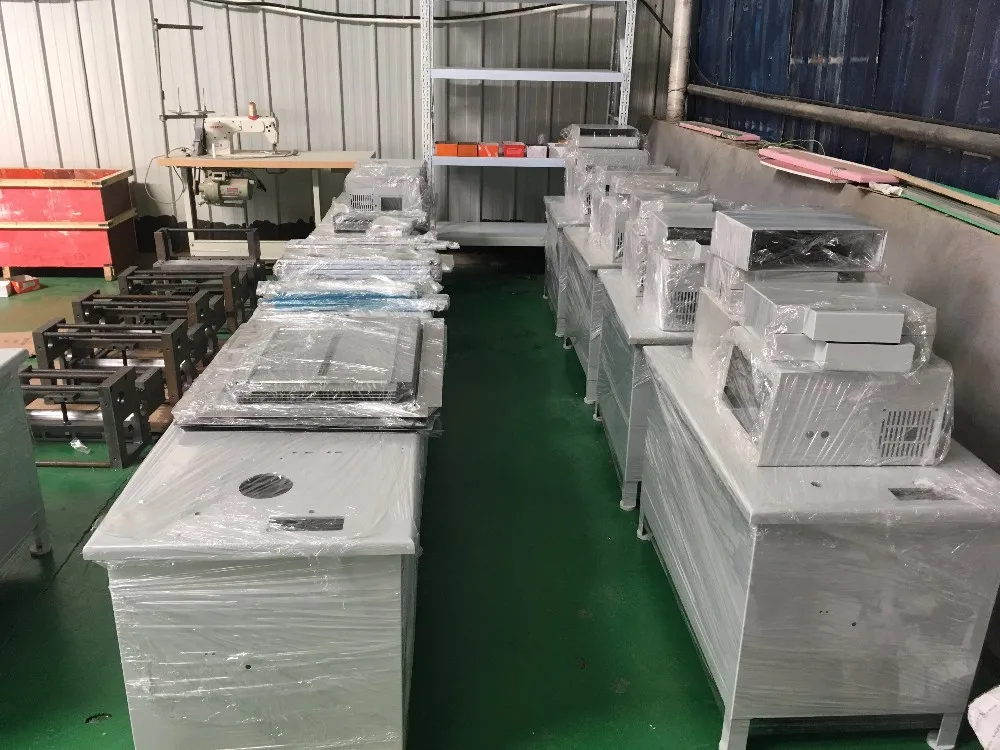

Packaging
Size
600 (L) * 600 (W) * 1200 (H) MM
Weight
100 KG
Packaging Details
The normal package  for automatic belt cutting machine is plywood case . It does not need Fumigation .It’s easy for forklift to upload and download .Safety transportation .,we will use PE film for packing first before plywood case or pack it according to customers special request.
Our Service

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to install the machine, training how to use the machine.

* Operation video are available .24 hours online support .

* Engineers available to service machinery overseas.

Our Company

Main parts

Structure parts

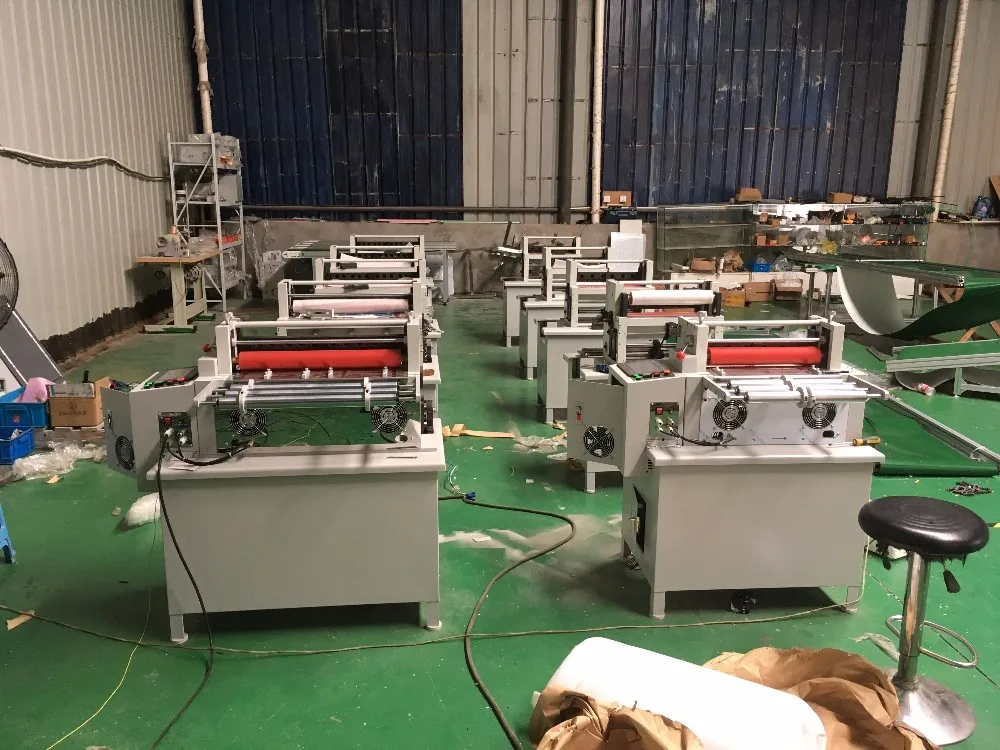

Finished machines

JiuMu Machinery (Kunshan) Co.,Ltd. comprise research ,development ,production ,sale and service as one of professional electronic products machinery manufacturing company .



We focus on automatic cutting machine ,slitting machine ,laminating machine for many years, five experienced engineers are on service .R&D department is responsible for developing new product according to customers’ needs

FAQ

1. Q: Are you a factory or trading company?

A: We are a factory and manufacturer

2. Q: Where is your factory located in ? How can I visit there?

A: Our factory is located in Kunshan which is very near from Shanghai, and

our detailed address is: Room 2 ,No.83 ,Xinpo Road ,Zhou Shi Town ,Kunshan City ,JiangSu Province China .

3. Q: what are your main products?

A: Our main products are belt cutting machines, slitting machines, sheeting machines, laminating machines and rotary die cutting machines.

4.Q: Which industries can use your machines ?

A: All industries need to cut (include full cutting and kiss-cutting), slit,

laminate, rotary die cut raw materials can use our machines.

5.Q: How to control the quality in your factory ?

A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification

6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?

A: Yes, we have our own professional design engineers, and can customize products according to your requirement.

A: All industries need to cut (include full cutting and kiss-cutting), slit,

laminate, rotary die cut raw materials can use our machines.

5.Q: How to control the quality in your factory ?

A: Quality is priority. We control the quality of our products strictly, from the incoming materials to the finished products. Our factory has obtained CE & ISO Certification

6. Q:If there are no machines available from your list, could we customize non-standard machines from you ?

A: Yes, we have our own professional design engineers, and can customize products according to your requirement.
